Double Leaf Swing Barrier
- 7.0m wide
- 1.2m high
- Galvanised

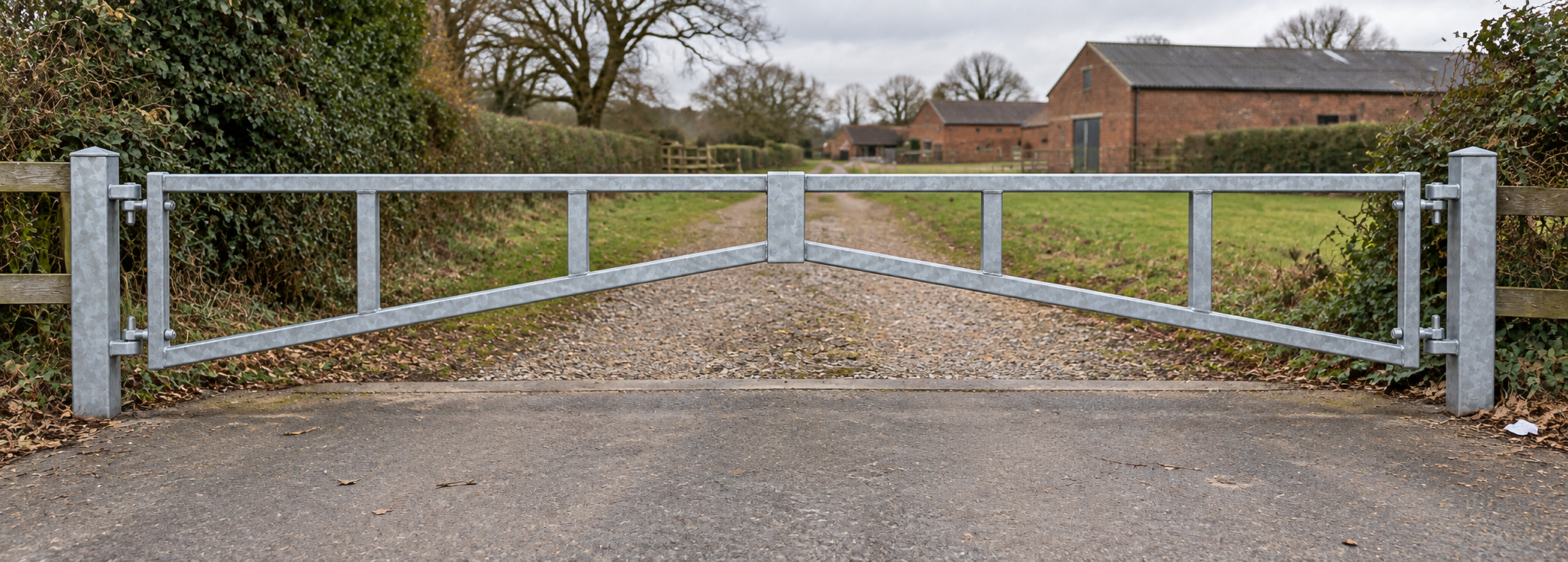

Galvanised double leaf swing barrier, 7m overall width and 1.2m high, with mirrored tapered frames, dig-in posts and two pairs of adjustable eyebolts included.
A galvanised double leaf swing barrier for controlling vehicle access. Two equal mirrored leaves meet at a plain rectangular centre closure plate, welded integrally to one leaf only.
- Overall width: 7m
- Height: 1.2m
- Hot-dip galvanised steel finish
- Two mirrored tapered leaves with level top rails and lower rails rising towards the centre
- Two outer dig-in hinge posts with solid welded tops
- Two pairs of adjustable eyebolts included (four in total), with adjustment nuts on both sides of each frame
- On both leaves, the upper hinge pin points downward and the lower hinge pin points upward
- Plain rectangular centre closure plate welded to one leaf only, with no exposed bolts on its face
£1,250.00 ex VAT
To order
Not on the shelf - we will instruct fabrication today
Tell us what you need and we will confirm the price and lead time, or suggest the closest item we hold in stock.
