Double Leaf Swing Barrier
- 9.0m wide
- 1.0m high
- Galvanised

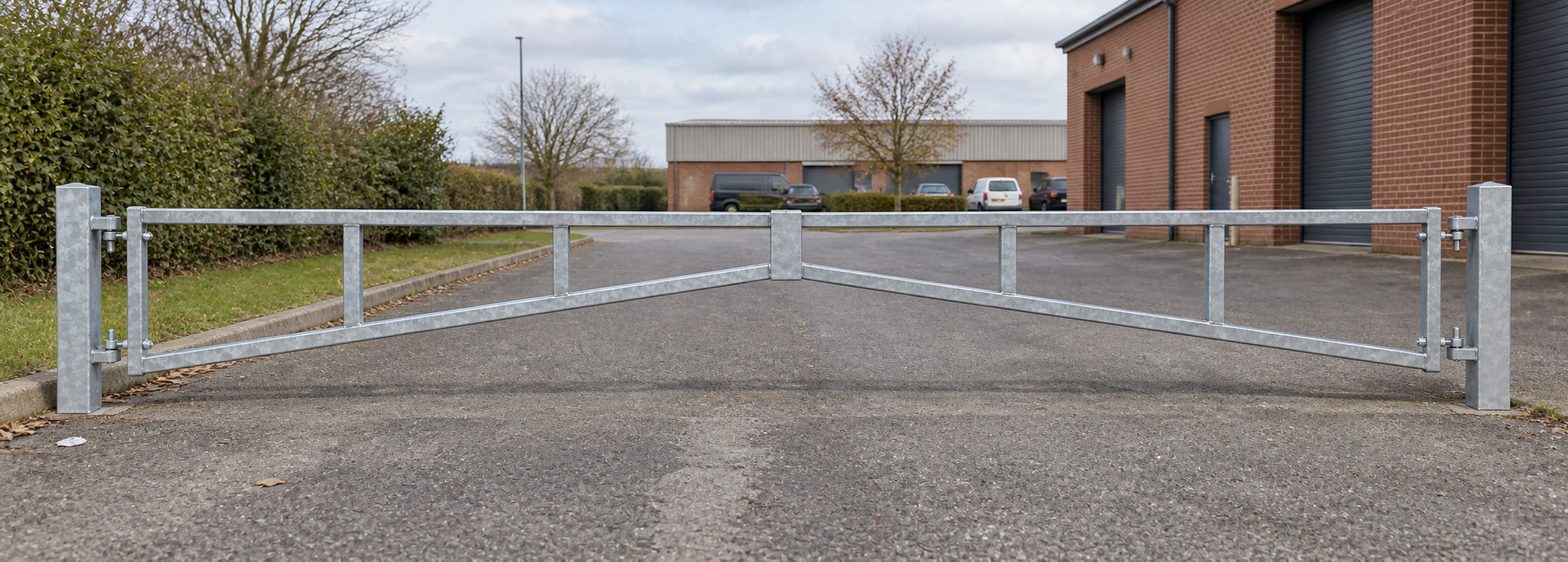

Galvanised double leaf swing barrier, 9m wide and 1.0m high. Two pairs of adjustable eyebolts included (four in total). Mirrored tapered leaves with a plain centre closure plate.
A galvanised double leaf swing barrier for controlling vehicle access.
- Overall width: 9m
- Height: 1.0m
- Hot-dip galvanised steel finish
- Two equal mirrored leaves, each 4.5m wide
- Level top rails and tapered lower rails rising from the outer hinge ends towards the centre
- Two intermediate box-section uprights per leaf
- Two outer dig-in hinge posts with solid welded tops
- Plain rectangular centre closure plate welded to one leaf only, with no exposed bolts on its face

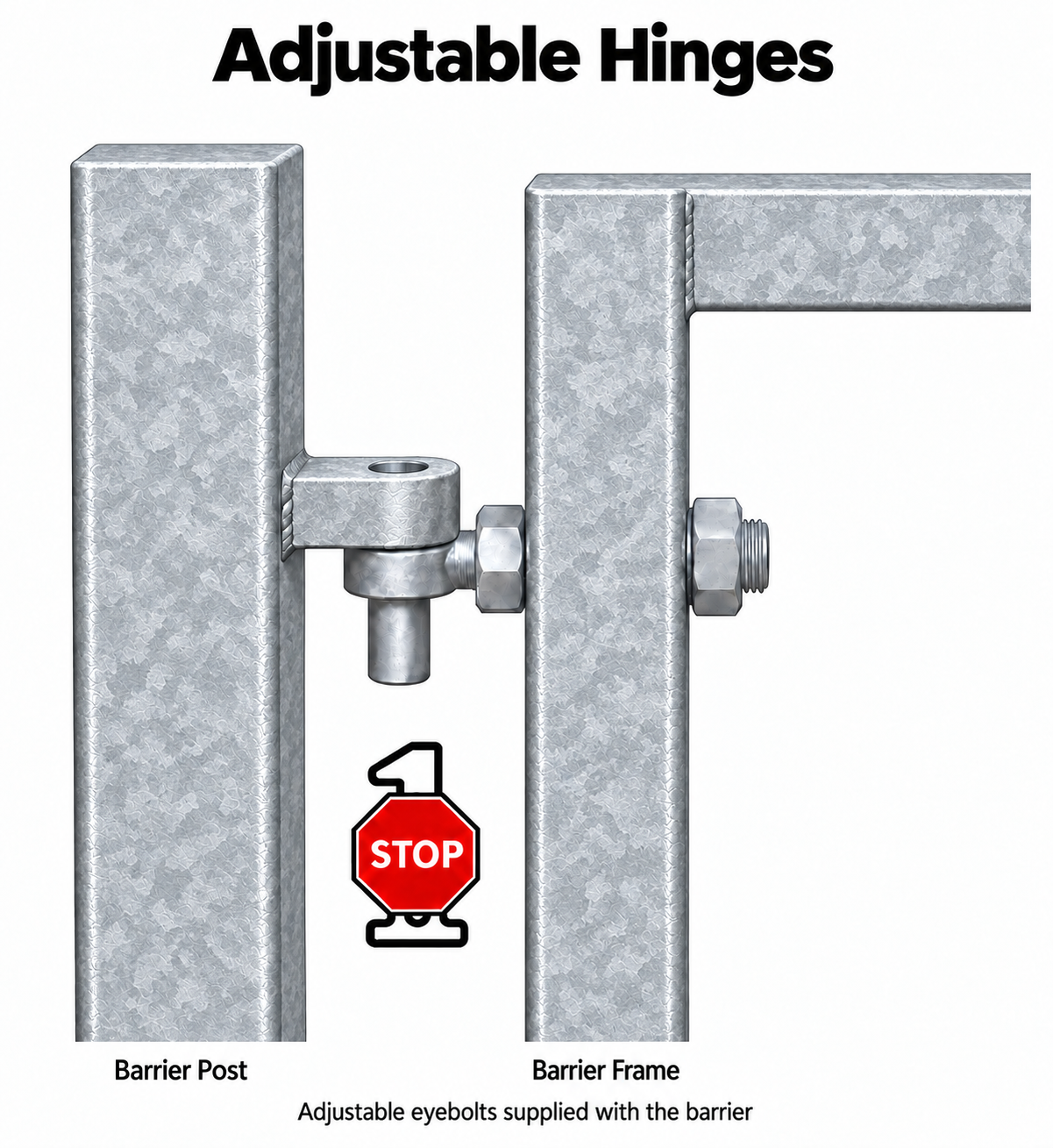

- Two pairs of adjustable eyebolts included (four in total), with adjustment nuts on both sides of the frame
- Upper hinge pins point downward; lower hinge pins point upward
£1,383.33 ex VAT
To order
Not on the shelf - we will instruct fabrication today
Tell us what you need and we will confirm the price and lead time, or suggest the closest item we hold in stock.
